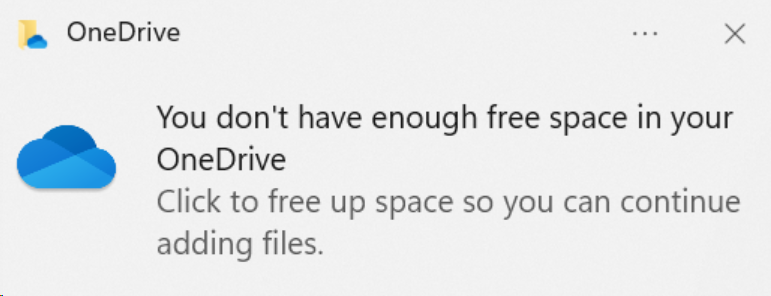

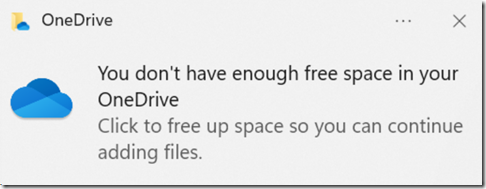

OneDrive, SharePoint, Wenig Speicherplatz, You don’t have enough free space in your OneDrive how to check GPO
Or where M365 cloud technology meets on-premises GPO.
points to check:
- Check local free space of laptop
- Check if the user has hit a sharepoint OneDrive Quota online with PS in M365
- Check if there is a GPO policy that sets warning or/and block limits in GB
First we check if the laptop has space. The laptop01 from user01 has 65GB free. His local OneDrive Cache is 14GB but looks fine.
So let us check what user1 from customer.ch is doing wrong or IT does wrong.
Let us check some things M365 tenant side. Try to connect and if not install some module.
Connect-SPOService -Url "https://customer-admin.sharepoint.com"
Error:
Connect-SPOService : Die Benennung “Connect-SPOService” wurde nicht als Name eines Cmdlet, einer Funktion, einer Skriptdatei oder eines ausführbaren Programms erkannt. Überprüfen Sie die Schreibweise des Namens, oder ob der Pfad korrekt ist (sofern enthalten), und wiederholen Sie den Vorgang. In Zeile:1 Zeichen:1 + Connect-SPOService -Url “https://customer.sharepoint.com” CategoryInfo : ObjectNotFound: (Connect-SPOService:String) [], CommandNotFoundException FullyQualifiedErrorId : CommandNotFoundException
If warning above install install the SharePoint PS module under your scope user account
Install-Module Microsoft.Online.SharePoint.PowerShell -Scope CurrentUser
Nicht vertrauenswürdiges Repository Sie installieren die Module aus einem nicht vertrauenswürdigen Repository. Wenn Sie diesem Repository vertrauen, ändern Sie dessen InstallationPolicy-Wert, indem Sie das Set-PSRepository-Cmdlet ausführen. Möchten Sie die Module von ‘PSGallery’ wirklich installieren? [J] Ja [A] Ja, alle [N] Nein [K] Nein, keine [H] Anhalten [?] Hilfe (Standard ist “N”): j
Let us get an overview so we don’t have 2000 sites there and do things other don’t like, just how big the Sharepoint setup is
Get-SPOSite -Limit All | Select StorageUsageCurrent, Url | Sort-Object StorageUsageCurrent -Descending | Select-Object -First 30
StorageUsageCurrent Url
------------------- ---
29303 https://customer.sharepoint.com/sites/Cafe
10412 https://customer.sharepoint.com/sites/Projekteintemp
9606 https://customer.sharepoint.com/sites/Links
2279 https://customer.sharepoint.com/sites/Projekt
949 https://customer.sharepoint.com/sites/Sante
631 https://customer.sharepoint.com/sites/Kunde
350 https://customer.sharepoint.com/sites/Aktivsal
270 https://customer.sharepoint.com/sites/Service
207 https://customer.sharepoint.com/sites/Ost
202 https://customer.sharepoint.com/sites/Hausdienst
145 https://customer.sharepoint.com/sites/IT
List storage quota from all users in Sharepoint
Get-SPOSite -IncludePersonalSite $true -Limit All | Select Owner, Url, StorageUsageCurrent, StorageQuota, StorageQuotaType Owner : Url : https://customer.sharepoint.com/sites/user4 StorageUsageCurrent : 147 StorageQuota : 26214400 StorageQuotaType : Owner : user1@customer.ch Url : https://customer.sharepoint.com/personal/user1 StorageUsageCurrent : 29 StorageQuota : 1048576 StorageQuotaType : Owner : Url : https://customer.sharepoint.com/sites/user5 StorageUsageCurrent : 1 StorageQuota : 26214400 StorageQuotaType :
Check single user01
Get-SPOSite -Identity "https://customer.sharepoint.com/personal/user1_customer_ch" | Select Url, StorageUsageCurrent, StorageQuota, StorageQuotaType, LockState Url : https://customer.sharepoint.com/personal/user1 StorageUsageCurrent : 29 StorageQuota : 1048576 StorageQuotaType : Default LockState : Unlock
This all looks normal the user has a StorageUsageCurrent 29 and StorageQuota is 1048576.
So let us check the laptop the M365 user has “laptop01”
Invoke-Command -ComputerName "laptop01" -ScriptBlock {
Get-CimInstance Win32_UserProfile |
Where-Object { $_.LocalPath -like "C:\Users\*" } |
Select-Object LocalPath, SID, Loaded
}
LocalPath : C:\Users\deutscheradminkopiertgpo
SID : S-1-5-21-6977092438-222634067-1652573912-4846
Loaded : False
PSComputerName : laptop01
RunspaceId : 82b51d52-d280-4a1f-99fc-31ea3e7f126e
LocalPath : C:\Users\user01
SID : S-1-5-21-2977092438-222634067-1652573912-4234
Loaded : True < User is logged on and active
PSComputerName : laptop01
RunspaceId : 82b51d52-d280-4a1f-99fc-31ea3e7f126e
We found the SID from user01
LocalPath : C:\Users\user01
SID : S-1-5-21-2977092438-222634067-1652573912-4234
Loaded : True < User is logged on and active
Let us check his OneDrive in his HKCU remote Registry. That means we connect with PS remote to his laptop from a management server we have access with PS. If you want to access the registry reote you would have to enable

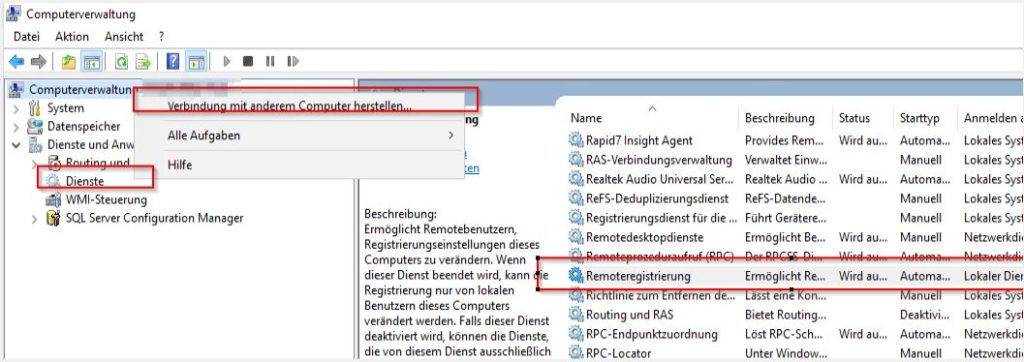

remote-registry on the machine first. Computer Management/Computer Verwaltung, Connect to other computer > Service > Enable/Start Remote-Registry Server.
Open registry from remote machine
remote machine HKEY_USERS\S-1-5-21-2977092438-222634067-1652573912-4234\Software\Microsoft\OneDrive
Or with PS
SID : S-1-5-21-2977092438-222634067-1652573912-4234
Invoke-Command -ComputerName "laptop01" -ScriptBlock {
$sid = "S-1-5-21-2977092438-222634067-1652573912-4234"
Get-ItemProperty "Registry::HKEY_USERS\$sid\Software\Microsoft\OneDrive" |
Format-List *
}
EnableDownlevelInstallOnBluePlus : 0
EnableTHDFFeatures : 1
Version : 26.163.0823.0004
MultiAccountRegMigrationComplete : 0
OneDriveTrigger : C:\Program Files\Microsoft OneDrive\OneDrive.exe
SCOOBEOptIn : 256
LastRunOneDriveVersion : 26.163.0823.0004
PreSignInSettingsConfigTimestamp : {150, 233, 129, 109...}
UpdateRingSettingsLastSuccess : 20719
FileSyncShellKillSwitchFlag : 8
OOBERedirection : 256
FileCoAuthTelemetryRampStatus : 1
FileCoAuthFeatureRampStatusFlags : 1
ClientConfigTelemetryTimeStamp : 1720159505
UpdateXMLRescanTime : 1440
SilentBusinessConfigByDefaultRamp : 0
MachineGuidCollection : ddc01xxxx98aad7
HostNameCollection : laptop01
UserNameCollection : user01
UserDomainCollection : customer
EmailHRDHostname : https://odc.officeapps.live.com
CrashCountLimitToDelayInitializationForTelemetry : 0
CrashLoopDelayMsToSendTelemetry : 0
DeviceIdChangeTrackWinV2 : 3
SilentBusinessConfigCompleted : 1
NucleusUpdateRingConfigTimestamp : {155, 114, 221, 51...}
DeviceIdForODC : {cbdxxxxxdb9062c4e}
OriginatorIdForODC : {795bxxxxxc7295f2}
BoxIdForOffice : {cbddxxxxx32c4e}
OfficeOriginatorID : {8e4exxxxxee64af}
UpdateRingPostAuthConditions : 0
ClientEverSignedIn : 1
SparsePackageEverSetup : 1
FootprintHeavyTestAssignedBin : 1790178897
OduCheckForUpdateStartTime : 1390139504
OduCheckForUpdateEndTime : 1390139505
AutoStartEnabled : 1
LastRunKeyEnabledTime : 1390139504
CommonStringUtilUseUnicodeStr : 1
DownloadURSFromOneDriveLauncherSafe : 1
OneDriveRestartedNucleusTimestamp : 1387151846
LastOneDriveLauncherRunTime : 1390140042
DeviceFeatureMask : 0
NucleusECSConfigTimestamp : {80, 243, 230, 51...}
IsPerMonitorV2DpiRamped : 1
StaleUpdateRingSettings : 0
FileCoAuthRunMarker : 1
PSPath : Microsoft.PowerShell.Core\Registry::HKEY_USERS\S-1-5-21-2977092438-2
22634067-1652573912-4234\Software\Microsoft\OneDrive
PSParentPath : Microsoft.PowerShell.Core\Registry::HKEY_USERS\S-1-5-21-2977092438-2
22634067-1652573912-4234\Software\Microsoft
PSChildName : OneDrive
PSProvider : Microsoft.PowerShell.Core\Registry
Does the user have many OneDrive accounts? He he using as example one business and some private or from third party company they work with?

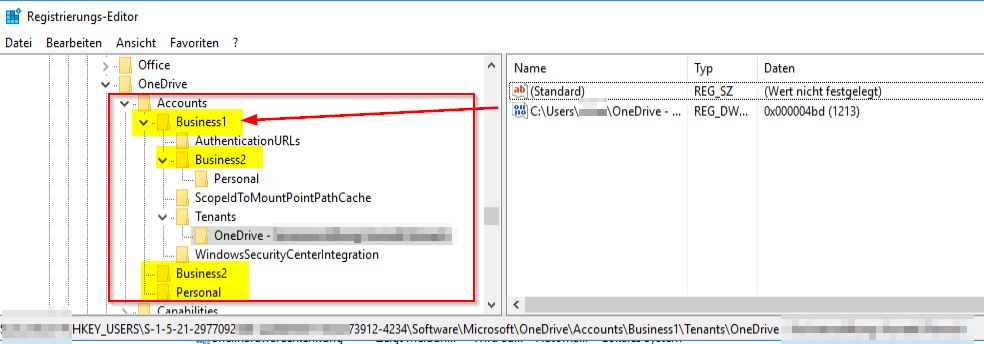

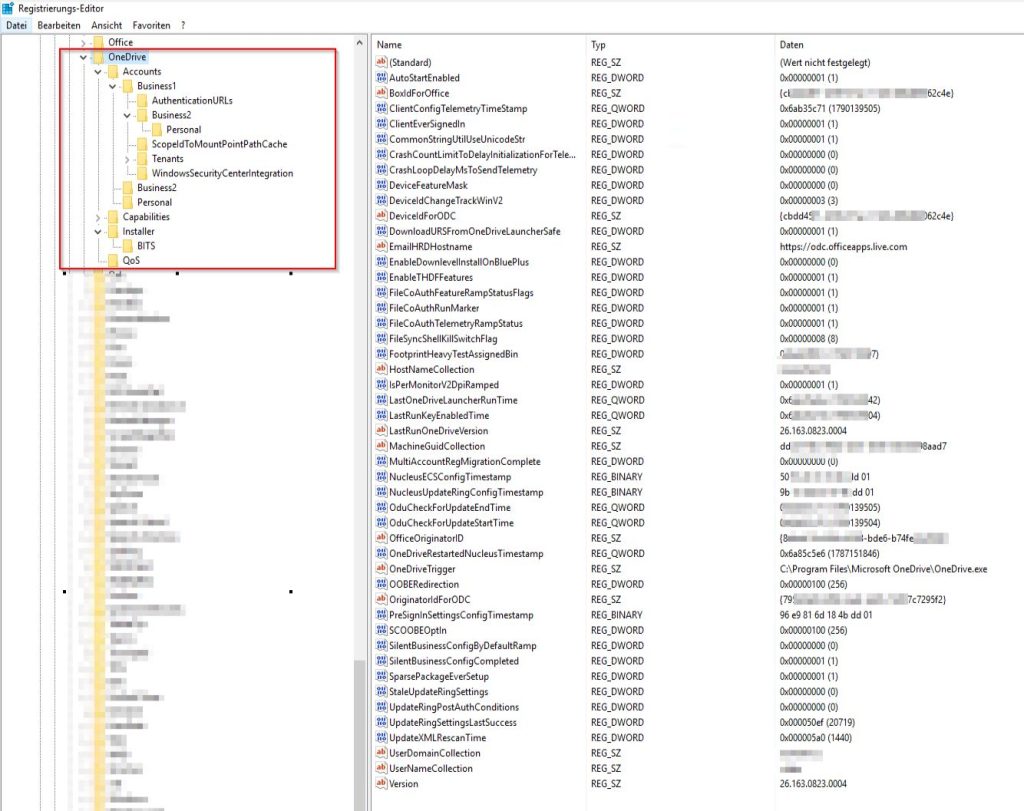

Let us check: HKEY_USERS\$sid\Software\Microsoft\OneDrive\Accounts
You wont get smarter for the Registry? Because the Business2 is UNDER the Business1 and also another times separate as Business2 same hierarchies as Business1
remote machine HKEY_USERS\S-1-5-21-2977092438-222634067-1652573912-4234\Software\Microsoft\OneDrive\Accounts
Same with PS
Invoke-Command -ComputerName "laptop01" -ScriptBlock {
$sid = "S-1-5-21-2977092438-222634067-1652573912-4234"
Get-ChildItem "Registry::HKEY_USERS\$sid\Software\Microsoft\OneDrive\Accounts" |
Select-Object PSChildName
}
SChildName PSComputerName RunspaceId
---------- -------------- ----------
Business1 laptop01 ebb59589-10da-449f-5e52-4178f0902ef5
Business2 laptop01 ebb59589-10da-449f-5e52-4178f0902ef5
Personal laptop01 ebb59589-10da-449f-5e52-4178f0902ef5
Invoke-Command -ComputerName "laptop01" -ScriptBlock {
$sid = "S-1-5-21-2977092438-222634067-1652573912-4234"
foreach ($account in "Business1","Business2","Personal") {
$path = "Registry::HKEY_USERS\$sid\Software\Microsoft\OneDrive\Accounts\$account"
if (Test-Path $path) {
Write-Host "`n========== $account ==========" -ForegroundColor Cyan
Get-ItemProperty $path |
Select-Object UserEmail, UserFolder, DisplayName
}
}
}
========== Business1 ==========
UserEmail : user01@customer.ch
UserFolder : C:\Users\user01\OneDrive - Customer Business Unit CH
DisplayName : Customer Business Unit CH
TenantId :
TenantName :
LastKnownUserFolder :
FilesOnDemandEnabled :
StorageQuota :
StorageUsed :
PSComputerName : laptop01
RunspaceId : 7881b40f-743c8-4447c-a482-d1d44f9b7e73b
========== Business2 ==========
UserEmail :
UserFolder :
DisplayName :
TenantId :
TenantName :
LastKnownUserFolder :
FilesOnDemandEnabled :
StorageQuota :
StorageUsed :
PSComputerName : laptop01
RunspaceId : 7881b440f-74c48-447c-a482-d1d444f9b7e73b
========== Personal ==========
UserEmail :
UserFolder :
DisplayName :
TenantId :
TenantName :
LastKnownUserFolder :
FilesOnDemandEnabled :
StorageQuota :
StorageUsed :
PSComputerName : laptop01
RunspaceId : 7881b440f-74c8-447c-a482-d1d4f449b7e73b
Looks like he is only using ========== Business1 ========== active and is in sync to his laptop. Regarding space and quota that is what we need to know.
From the M365 side everything looks normal and is NOT the source.
Let us just if the user and machine gets a policy which does anything we don’t want.
Invoke-Command -ComputerName "laptop01" -ScriptBlock {
$sid = "S-1-5-21-2977092438-222634067-1652573912-4234"
$paths = @(
"Registry::HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\OneDrive",
"Registry::HKEY_USERS\$sid\Software\Policies\Microsoft\OneDrive"
)
foreach ($path in $paths) {
if (Test-Path $path) {
Write-Host "`n=== $path ===" -ForegroundColor Cyan
Get-ItemProperty $path | Format-List *
}
}
}
=== Registry::HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\OneDrive ===
BlockExternalSync : 1
PermitDisablePermissionInheritance : 0
MinDiskSpaceLimitInMB : 40000
EnableSendFeedback : 0
EnableSurveyCampaigns : 0
EnableContactSupport : 0
KFMSilentOptInDesktop : 0
KFMSilentOptInDocuments : 0
KFMSilentOptInPictures : 0
KFMBlockOptIn : 2
SilentAccountConfig : 1
FilesOnDemandEnabled : 1
LocalMassDeleteFileDeleteThreshold : 20
WarningMinDiskSpaceLimitInMB : 80000
PSPath : Microsoft.PowerShell.Core\Registry::HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\OneDrive
PSParentPath : Microsoft.PowerShell.Core\Registry::HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft
PSChildName : OneDrive
PSProvider : Microsoft.PowerShell.Core\Registry
Solution > We found the cause

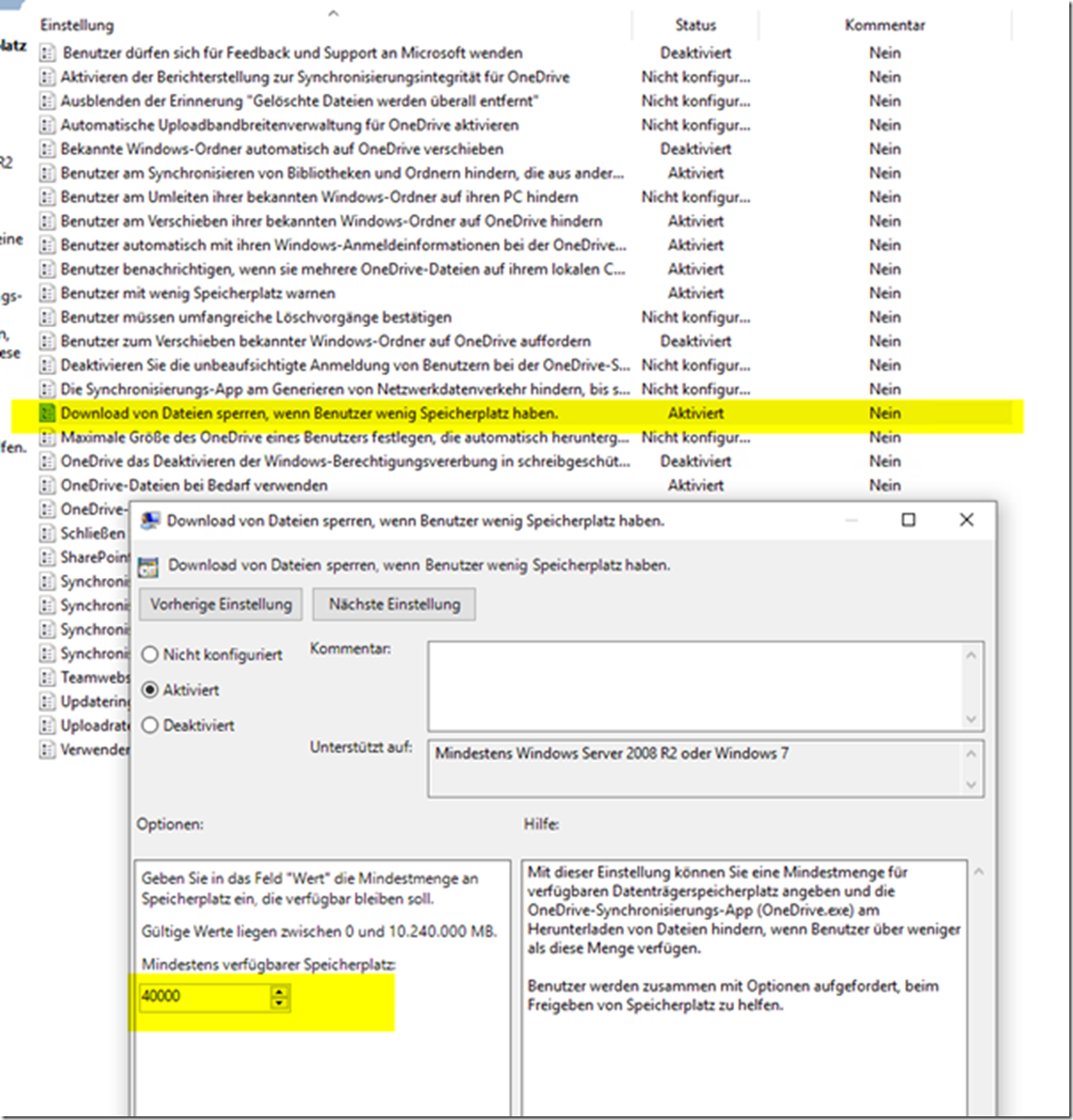

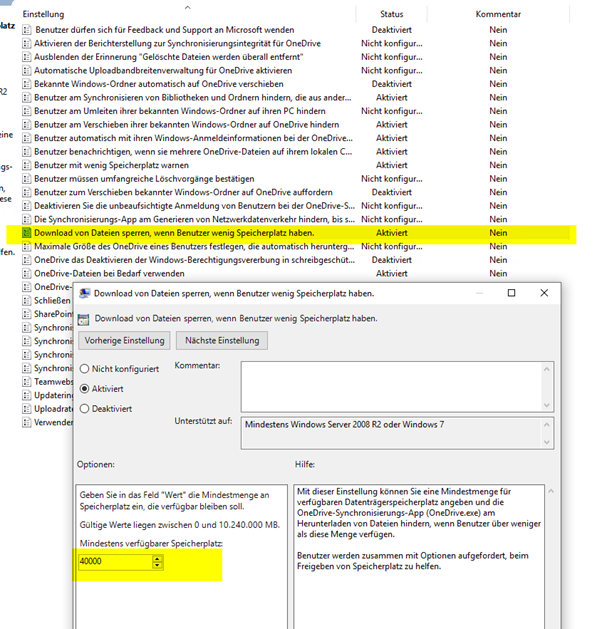

MinDiskSpaceLimitInMB : 40000
WarningMinDiskSpaceLimitInMB : 80000- 40,000 MB (~40 GB) = minimum disk space threshold
- 80,000 MB (~80 GB) = warning threshold
- Her laptop has only ~65 GB free

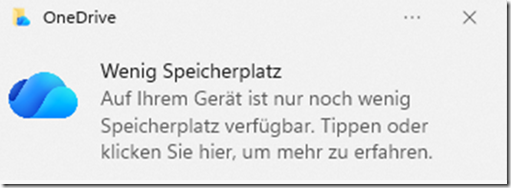

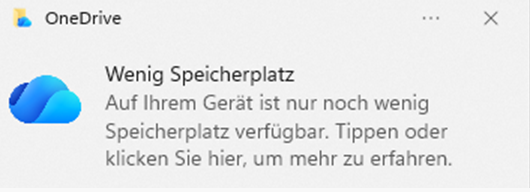

- Therefore OneDrive sees 65 GB < 80 GB warning threshold and displays “Wenig Speicherplatz auf Ihrem Gerät”.
So nothing is actually full.
The warning is being triggered by your organization’s OneDrive policy. 😉
Let us find the GPO which some guy copied over from another customer and did not check the client fleet and type before activation.

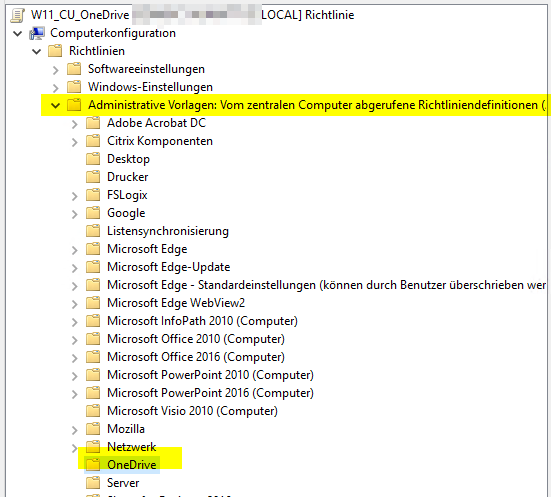

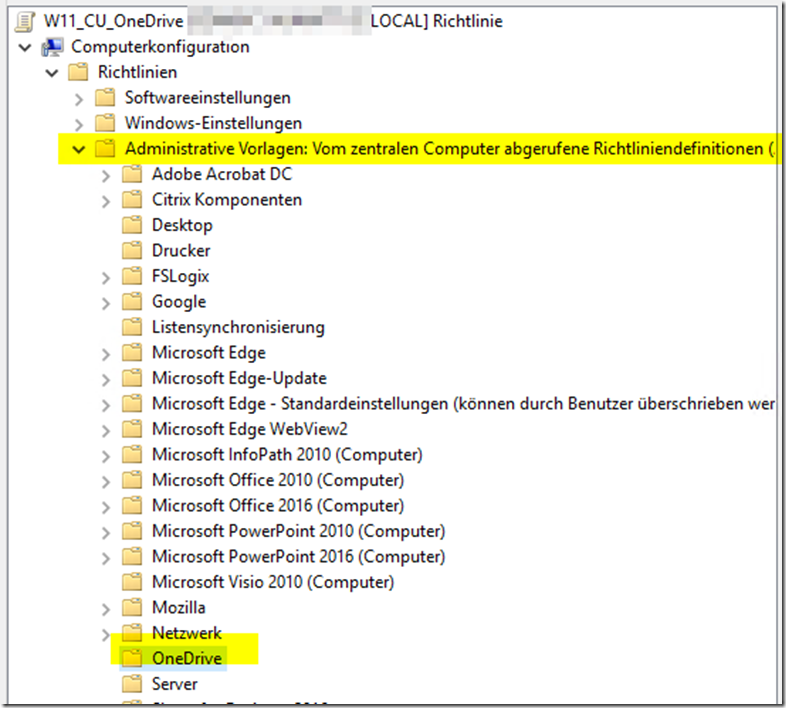

GPO side check there is a W11_CU_OneDrive (Nice done with C and U part visible in naming so we know it is a Computer and User Policy in one.

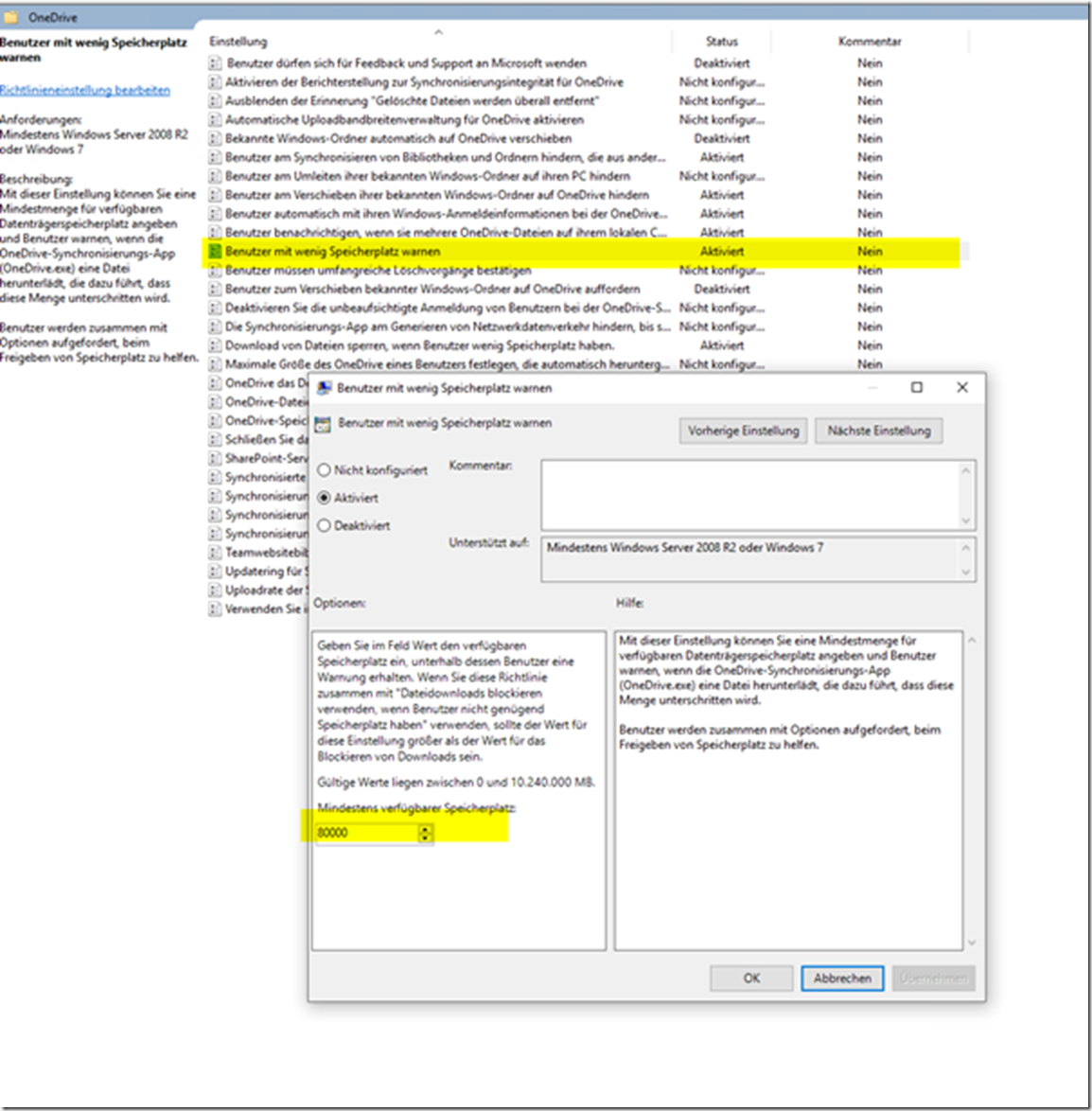

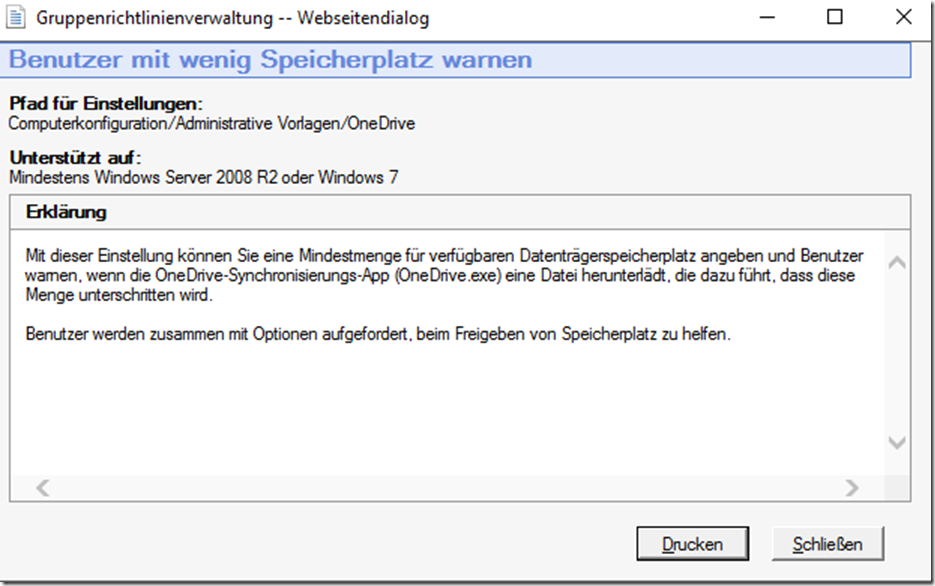

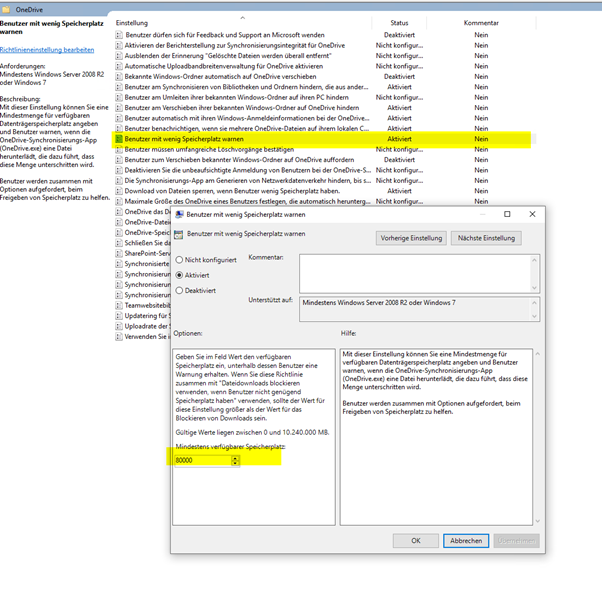

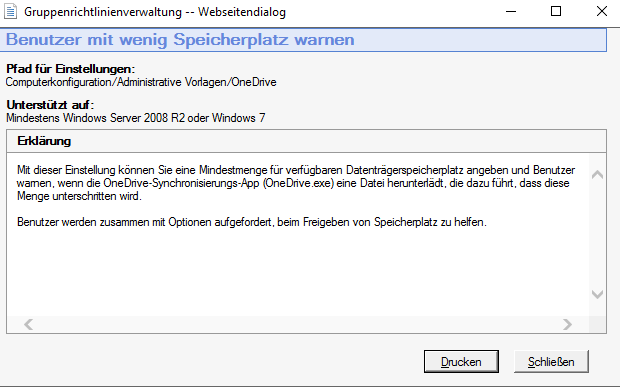

Warn users who are low on disk space
Applies to: Group Policy, Intune
This setting lets you specify a minimum amount of available disk space, and warn users when the OneDrive sync app (OneDrive.exe) downloads a file that causes them to have less than this amount. Users are prompted with options to help free up space.
Enabling this policy sets the following registry key value to a number from 0 through 10240000:
[HKLM\SOFTWARE\Policies\Microsoft\OneDrive] "WarningMinDiskSpaceLimitInMB"=dword:00000000
Computerkonfiguration >RichtlinienAusblenden > Administrative Vorlagen > OneDrive > Benutzer mit wenig Speicherplatz warnen
Good explanation in detail on MS learn so cloud-o-mania managers also understands. 😉
https://learn.microsoft.com/en-us/sharepoint/use-group-policy
